A VALUABLE CONTRIBUTION TO ENVIRONMENTAL PROTECTION
Water dispensers with a fixed water connection are very much in vogue: chilled, non-chilled or carbonated
There is no more efficient way to transport water than via the piped network. This means that the water does not have to be bottled and transported to its destination by truck. This saves plastic waste and CO2!
In order to protect the water dispenser from excessive supply pressure and to ensure the right operating pressure, water dispensers are equipped with pressure reducers. Goetze is your partner in terms of pressure here too. With the 9160 series, the smallest water pressure reducer in the Goetze portfolio, we have the right pressure reducer for your water dispenser.
The integrated filter screen protects the water dispenser and the installation from particles and impurities. An adjustment scale in the spring cap allows pressureless presetting with a screwdriver. The housing is made of dezincification-resistant brass - also available in lead-free brass on request.

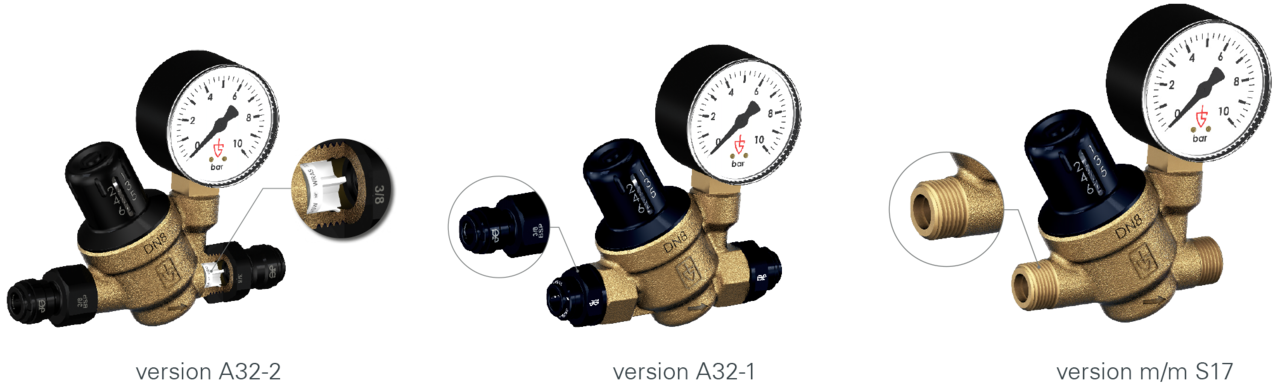

To ensure the most convenient installation possible, the 9160 series pressure reducer in DN8 is also available with pre-assembled hose connectors. For the connection of flexible hoses, the variant with 3/8" external thread is available. This means that there is no need for separately mounted fittings and the pressure reducer can be mounted directly.
According to DIN EN 1717, a water dispenser (without fine filter / activated carbon filter) must be secured with a class 2 safety device. Here, too, there is a solution from Goetze in which a backflow preventer type EA is integrated in the housing of the pressure reducer. This means that the backflow preventer does not have to be mounted as a separate component.
A pressure gauge with PTFE ring is optionally available. This is simply screwed into position and does not need to be sealed with hemp or Teflon tape.
