News 04/02/2025news-493-product-launch

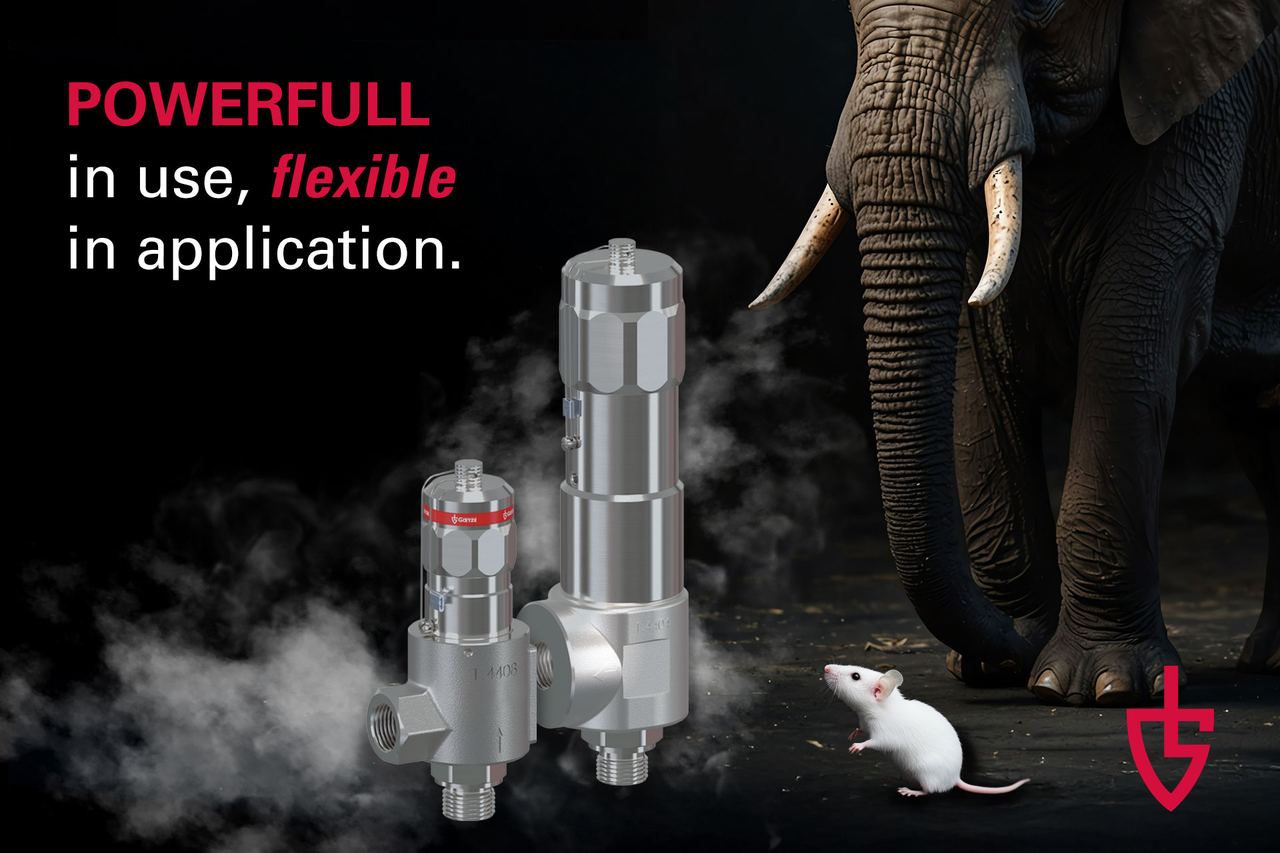

Our new high-pressure overflow valves in the 493 series – built for big challenges, designed for maximum flexibility.
With the 493 series, we are expanding our product portfolio to include two high-performance high-pressure overflow valves that meet the increasing demands of modern industrial applications. The series includes two different designs – Design I and Design III – that are specifically tailored to various installation situations, pressure ranges and operating conditions. Whether in hydrogen compression, pump protection or gas liquefaction – the 493 series is the optimal solution for demanding high-pressure applications.
Two designs, one goal: safe and efficient high-pressure operation
Design I – Compact, lightweight and flexible for confined installation spaces
The compact design of design I saves space during installation. This design is the ideal choice for systems with limited space.
Technical features:
- Pressure range: 725 to 7252 psi
- Nominal diameters: DN8 – DN10
- Temperature range: -320 °F to +392 °F
- Opening characteristic: proportional
- Rotatable angle housing for flexible installation
- Adjustable from the outside for easy pressure adjustment
- Weight: 3 lb
Design III – Robust and powerful for high pressure ranges
Design III is designed for applications in which high pressures and demanding operating conditions are the main factors. With its fixed angle housing, it offers maximum stability and is ideally suited for use in systems with high back pressures.
Technical features:
- Pressure range: 725 to 14504 psi
- Nominal diameter: DN10
- Temperature range: +14 °F to +302 °F
- Opening characteristic: proportional
- Back-pressure compensated up to 500 bar
- Fixed angle housing for robust applications
- Adjustable from the outside for easy pressure adjustment
- Weight: 6.4 lb
Why the 493 series? – Your advantages at a glance
- For pressure ranges up to 14504 psi
- Flexible installation and easy pressure adjustment: Both designs can be adjusted externally
- Wide range of applications: Suitable for use with liquids, gases, vapours and – depending on the seal material – steam
- High-quality materials: For use in demanding and corrosive environments
- Proportional opening characteristic for precise pressure control and stable system conditions
Powerful in use, flexible in application
With the high pressure overflow valves of the 493 series, Goetze offers an innovative solution for protecting high pressure systems.
Whether it is for pump protection, hydrogen compression or gas liquefaction, the 493 series meets the highest safety, efficiency and durability requirements.
Contact us now for more information or to arrange a personal consultation with our valve experts.
